EXO 4.5

The aero power road wheel built for tubeless tires, Rim brake

Trusted for class-leading speed across rolling terrain.

Weight : 1310 grams (Pair)
Weight : 580 grams (Front)
Weight : 730 grams (Rear)

More infos

Pair
Front
Rear
TUFF OS
Shimano HG
Campagnolo N3W
Campagnolo 11/12S
XDR
Black
54T
White
Black
Red
Bianchi
Pink
Blue
Grey
Silver
Orange
Green
Gold
Yellow
Oil Slick Rainbow
Grand total

SKU: EXO 4.5 Category: Tag:

Key Benefits

Road Attributes
Weight Pair

1310

Weight Front

580

Weight Rear

730

Rim

700c Carbon Clincher Rim brake Specific

Rim Weight

Front: 400g, Rear 430g

Rim Depth

Front: 46mm, Rear 56mm

Internal Rim Width

19mm

ERD

549/529

Offset

2.5mm

Roundness

0.2mm

Tubeless

Compatible

Value Balanced

Yes

Carbon Finish

UD Carbon Fiber

Hub

exo rim brake

Bearing Numbers

6803 (2), R 6802 (2) / 6902 (2)

Bearing Type

HSCER Ceramic Cartridge Bearings

Free Hub

Shimano/sram xdr/ campy

Spokes (Black)

CARBON fiber aero blade Straight-Pull

Spoke Count

Front: 18, Rear: 21

Spoke Pattern

Front: Radial, Rear: 2x

Max Spoke Tension(kgf)

F 130/105, R 95/130

Nipples

exo aluminum nipples

Recommended Tire

Continental GP5000 / GP5000 STR / Schwalbe / Vittoria (25mm x 700c or 28mm x 700c)

Recommended Tire Pressure

110 psi

Max Tire Pressure

140 psi

Rider Weight Limit

242lbs / 110kg

Included Accessories

Titanium QR Skewers (for QR hubs), brake pads/ Valve /2pcs spokes

Spokes Lengths

–

Note

ALL TUFF freehub bodies and ratchet are compatible with dt 240 hub

More
Hub Axle

QR

Technical Specifications

Many of our EXO customers have lost sleep over deciding which to choose: the more aero package of EXO 4.5 wheels instead of the lighter weight of the EXO 3.4.

We feel going any deeper than the EXO 4.5 negates the weight advantage of the carbon spokes and the bladed steel spokes used in our SAW wheels make a better aero package.

But just what is more important to you? The last few grams on your climbing bike or those last few watts saved getting to your favourite climbs?



Technologies

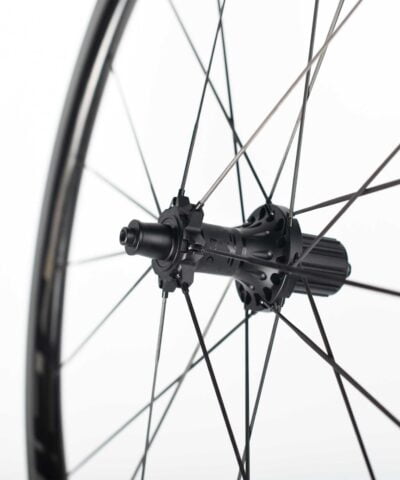

TUFF 54T Ratchet HUB

TUFF Smart System comes with a new 54T ratchet that brings to the fast and powerful speed.

Cooperation with DT/ TPI Steel bearings, to ensure the high quality and great easy service.

Big bearing means more durable and powerful.

even with big bearings but TUFF reduces the weight with high leave aluminum 7075 material for the hub.

FREEHUB COMATIBLE WITH

SHIMANO HG

XDR

Campagnolo 11/12S

Campagnolo 13 (N3W)

EXO WHEELS designed with super light weight  Full Toray T800 Carbon RIM and FULL CARBON BLADE SHAPE SPOKE
  • GREAT REACTION
  • HIGH SPEED
  • SUPER POWERFULL
  • TUBELESS COMPATIBLE

WHY CARBON FIBER SPOKE

POWER SAVE

MORE STIFF

MORE AERO

SUPER LIGHT WEIGH

EASY BUILD LIKE STEEL SAPIM CXRAY

SUPER REACTION

QR AND BRAKE PADS NOT INCLUDED FOR EXO DISC

ONLY FOR EXO RIM BRAKE

                                                     EXO E5 HUB

NOT ONLY COOL SHAPE DESIGN BUT ALSO HIGH LEVEL ALUMINIUM T7075 MATERIALS MADE

NEW EXP RATCHET SYSTEM

STANDARD WITH 36T RATCHET

54T RATCHET AS UPGRADE OPTION

SUPER SMOOTH AND STIFF  HSCER CERAMIC

FREEHUB COMATIBLE WITH

SHIMANO HG

XDR

Campagnolo 11/12S

Campagnolo 13 (N3W)

EXO WHEELS designed with super light weight

Full Toray T700 Carbon RIM and FULL CARBON BLADE SHAPE SPOKE

  • GREAT REACTION
  • HIGH SPEED
  • SUPER POWERFULL
  • TUBELESS COMPATIBLE

WHY CARBON FIBER SPOKE

POWER SAVE

MORE STIFF

MORE AERO

SUPER LIGHT WEIGH

EASY BUILD LIKE STEEL SAPIM CXRAY

SUPER REACTION

QR AND BRAKE PADS NOT INCLUDED FOR EXO DISC

ONLY FOR EXO RIM BRAKE
