Filter

XC 29

$999.00

Short track, marathons, and all-day suffer fests.

27.5ER
29ER
Pair
Front
Rear
TUFF OS-M (54T)
DT 240 EXP
DT 350
15*100
15*110
12*142
12*148 Boost
Shimano hg
Microspline
Campy 11
Campy 13
XD
54T
White
Black
Red
Bianchi
Pink
Blue
Grey
Silver
Orange
Green
Gold
Yellow
Oil Slick Rainbow
Grand total
SKU: XC29 Category: Tags: ,
Key Benefits

the XC29 is the XC wheel that is more than you will ever need and exactly what you want.
Repeated impacts, bottom outs, high speed corners, and coming up short—the XC29 was designed to
go head first into the roughest conditions and come out the other side, intact and flat-free.

Technical Specifications
Road Attributes
Rim

29ER

Rim Weight

Front: 360g, Rear 360g

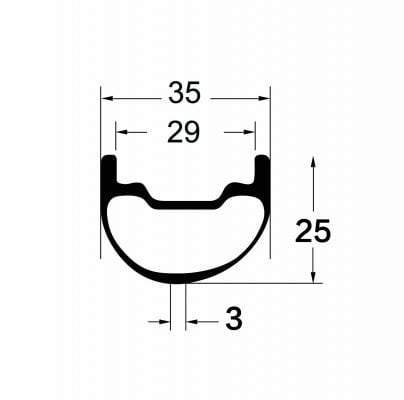

Rim Depth

Front: 25mm, Rear 25mm

Internal Rim Width

29mm

Brake Track

None

Max Width

Front: 37mm, Rear 37mm

Offset

2.6

Roundness

0.2mm

Tubeless

Compatible

Value Balanced

Yes

Carbon Finish

3K Carbon Fiber

Hub

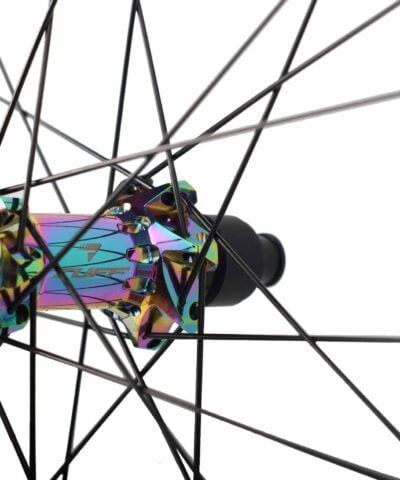

TUFF OS 54T Ratchet system(standard)

Bearing Numbers

F 6902 (2), R 6802 (2) / 15267 (2)

Bearing Type

Stainless Steel Cartridge Bearings

Free Hub

Shimano HG9, XD /Micro Spline / CAMPY

Spokes (Black)

Sapim Sprint double butted spokes Straight-Pull

Spoke Count

Front: 28, Rear: 28

Spoke Pattern

Front: 2x, Rear: 2x

Max Spoke Tension(kgf)

F 120/105, R 65/130

Nipples

Sapim Self Locking Polyax Aluminum Nipples , if need bass nipples contact us

Recommended Tire Pressure

30~40psi

Max Tire Pressure

50 psi

Rider Weight Limit

250lbs / 120kg

Included Accessories

2 replacement spokes with each wheel / Tubeless Valve

Spokes Lengths

–

More
AXLES

Front 15X110 Boost ; Rear 12X148 Boost

HUB ROTER COMPATIBILITY

6-Bolts

TIRES SIZE RECOMMEND

50mm to 76mm (2.0" to 3.0")

Weight

5 kg

Dimensions

82 × 16 × 66 cm

Technologies
All our technologies are developed to achieve certain special application purposes of a product. Simply say, technology is born from riders' demands. Based on our different product designs, there are different purposes and guiding ideas behind them. Therefore, our engineering team has worked out proper and practical technologies for tooling, and manufacturing processes to make our products unique and stable.
MATERIAL DEVELOPMENT
STRUCTURE & LAY UP
MOULD TOOLING
PROCESS & PRODUCTION
Customer Care
Review

Reviews

There are no reviews yet.

Write a review

Related products

Quick View

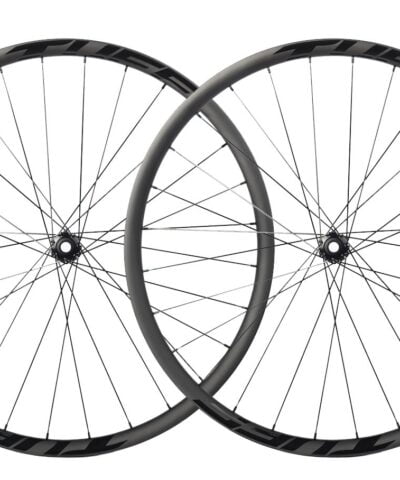

XC 27
