Name: SAW G3 80
SKU: SAW-G3-80
Availability: InStock

Key Benefits

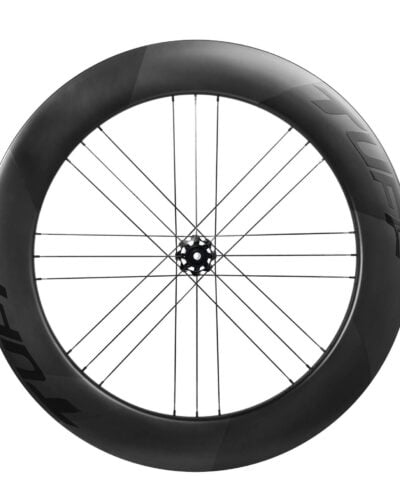

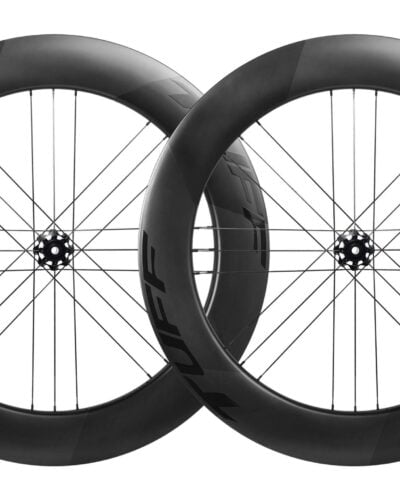

The SAW G3 80 wheels are the most requested wheelset for bigger riders or for TT bikes.
The deeper rim combination offers more aerodynamic performance
at a more manageable depth and weight than the SAW G3 60

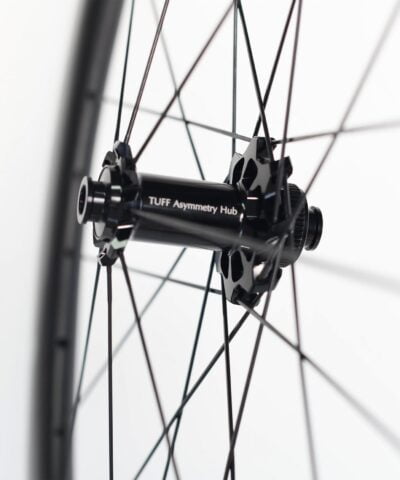

TUFF G3 Patented hub G3™
In G3 geometry, the right side of the rear wheel has twice the number of spokes compared to the left side.

This enables an improved energy transfer. It also reduces the stress on the spokes on the right side and increases lateral stiffness.

The advantages of the G3 system are astonishing: better transmission of power, greater lateral rigidity and reduction of spoke tension on the rear wheel.

Thanks to the G3 system, which compensates for the forces acting on 2 sides of the wheel, vibrations are eliminated, even for people with heavier weights.

cooperation with TPI ceramic bearings brings smooth and lightweight to the top cycling level

Technical Specifications

Road Attributes

Weight Pair	1690
Weight Front	790
Weight Rear	900
Rim	700c Carbon Clincher tubeless
Rim Weight	Front: 600g, Rear 600g
Rim Depth	Front: 80mm, Rear: 80mm
Internal Rim Width	21mm
Offset	2.5 mm
Roundness	0.2mm
Tubeless	Compatible
Carbon Finish	UD Carbon Fiber
Hub	TUFF G3 Disc brake
Bearing Numbers	F 6803 (2), R 6802 (2) / 6902 (2)
Bearing Type	DT Steel Bearings
Free Hub	Shimano/SRAM 9/10/11 xdr Or Campagnolo 9/10/11
Hub Axle Width	Front: 100mm, Rear: 142mm
Spokes (Black)	Sapim CX-Ray Straight-pull
Spoke Count	Front: 24, Rear: 24
Spoke Pattern	Front: 2:1 G3, Rear: 2:1 G3
Max Spoke Tension(kgf)	F 125, R 95/130
Nipples	Sapim Self Locking Polyax Aluminum Nipples , if need bass nipples contact us
Recommended Tire Pressure	110 psi
Max Tire Pressure	130 psi
Rider Weight Limit	250lbs / 120kg
Included Accessories	accessories bag/2PCS EXTRA SPOKES/ Valve Extensions/
Spokes Lengths	–
Engineering	Tuffcycle
Generation	3rd PATENT
Note	* rim weights are subject to a +/- 5% variance

Technologies

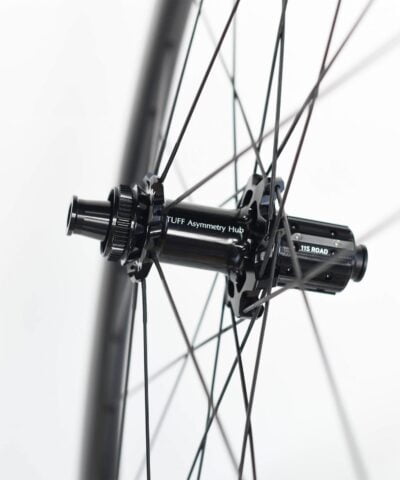

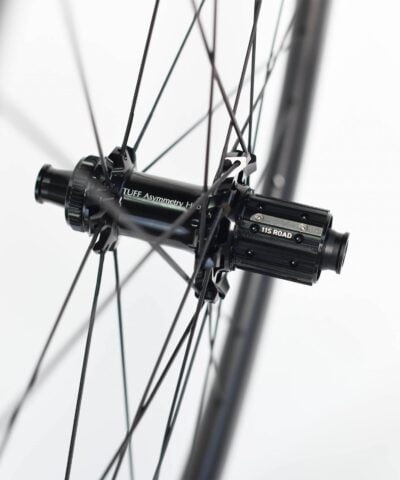

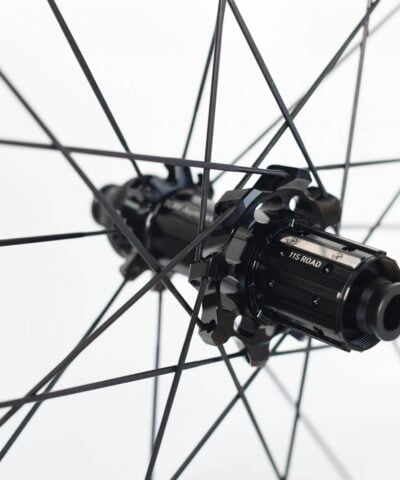

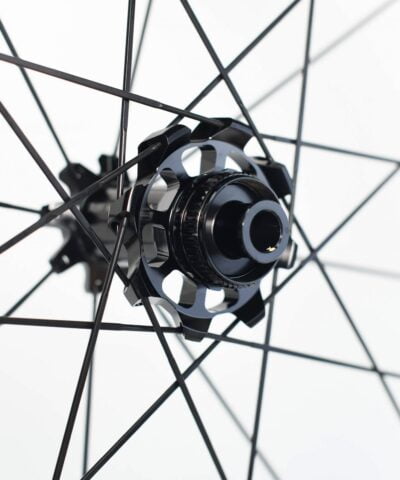

TUFF G3 HUB

TUFF G3 Smart System comes with a new 54T ratchet that brings to the fast and powerful speed.

Cooperation with DT/ TPI Steel bearings, to ensure the high quality and great easy service.

Big bearing means more durable and powerful.

even with big bearings but TUFF reduces the weight with high leave aluminum 7075 material for the hub.

FREEHUB COMATIBLE WITH

SHIMANO HG

XDR

Campagnolo 11/12S

Campagnolo 13 (N3W)

ALL TUFF WHEELS with AERO U SHAPE design

Full Toray T800 Carbon RIM and SAPIM CXRAY BLADE SHAPE SPOKE

TUFF Smart System The recipe for a fast wheel doesn’t come from one single ingredient, rather, it’s a combination of ingredients. Starting with wheel-in-frame development, TUFF creates industry leading wheels with aerodynamics and stability in dynamic real-world wind conditions. This is accomplished by developing rims with specific shapes, widths, and depths for the front and back of the bike. TUFF’s patented molded spoke hole technology eliminates excess material by running uninterrupted carbon fibers throughout each rim allowing for a lighter, stiffer, stronger, and more reliable wheelset.

SAPIM CXRAY AERO BLADE STEEL SPOKE

STIFF

AERO

LIGHT WEIGH
