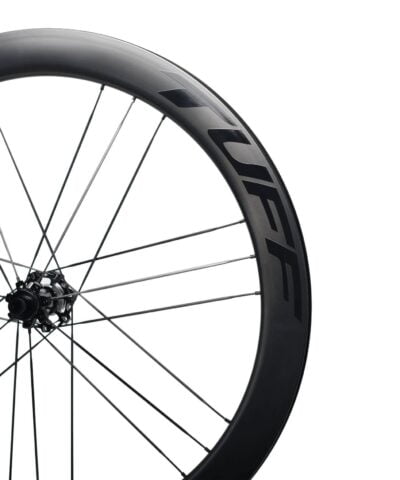

HELIUM G3 56 NEW

$1,299.00

The wheelset of choice for fast road riding and racing; the  HELIUM 56 DISC brake wheel is aero-prioritized while remaining best-in-class for weight.
It is the go-to for professional racers on the world circuit.

Pair
Front
Rear
TUFF G3
Shimano HG
Campagnolo N3W
Campagnolo 11/12S
XDR
Black
54T
White
Black
Red
Bianchi
Pink
Blue
Grey
Silver
Orange
Green
Gold
Yellow
Oil Slick Rainbow
Grand total
SKU: HELIUM G3 56 Category:
Key Benefits

Building upon the legacy of the helium 56 Disc by delivering more speed via next-gen TUFF rim shaping, the helium 56 sees increased depth without a decrease in stability.

The all-new helium rim profile has revised curvature and increased widths that are optimized for 25mm ～43mm tires in modern frames with greater clearances.

Adding tubeless compatibility for decreased rolling resistance, special with carbon fiber spokes makes this the ultimate road-racing wheelset for everyday use.

At 56mm depth in the front, and 56mm depth in the rear, the  helium 56 was painstakingly refined to achieve the optimal combination of strength, stiffness, and lightweight for the application for which it was designed. In the case of the helium 56 – Road Racing.
the helium 56 features a disc brake specific construction that saves weight, improves strength, and creates an unprecedented ride quality.
• Inner rim width: 21mm
• Aero Optimized Tire Size: 25 – 43c
• Clincher Tubeless

Technical Specifications
Road Attributes
Weight Pair

1330

Weight Front

615

Weight Rear

715

Rim

700c Carbon Clincher Disc Specific

Rim Weight

Front: 430g, Rear 430g

Rim Depth

Front: 56mm, Rear 56mm

Internal Rim Width

21mm

ERD

527

Offset

2.6mm

Roundness

0.2mm

Tubeless

Compatible

Value Balanced

Yes

Carbon Finish

Matte UD Carbon Fiber

Hub

TUFF G3 54T Ratchet hub

Bearing Numbers

F:6802 (2) / 15267 (4)

Bearing Type

DT Steel Bearings

Free Hub

Shimano/sram xdr/ campy

Spokes (Black)

CARBON fiber straightpull

Spoke Count

Front: 21, Rear: 21

Spoke Pattern

Front: G3 3x, Rear: G3 3x

Max Spoke Tension(kgf)

F 130/105, R 95/130

Nipples

aluminum nipples

Recommended Tire

Continental GP5000 / GP5000 STR / Schwalbe / Vittoria

Recommended Tire Pressure

90～100psi

Max Tire Pressure

140 psi

Rider Weight Limit

250lbs / 120kg

Included Accessories

2 replacement spokes with each wheel / Tubeless Valve

Spokes Lengths

–

More
Sapim Upgrade Wheel Weight

Front: 678g, Rear: 864g, Set: 1542g

Hub Axle

DISC: , 12×100 TA, 12×142 TA

Disc Hub Rotor Compatibility

Disc: Center Lock

Technologies

TUFF G3 HUB

              NOT ONLY COOL SHAPE DESIGN BUT ALSO HIGH-LEVEL

ALUMINIUM T7075 MATERIALS MADE

NEW EXP RATCHET SYSTEM

STANDARD WITH 54T RATCHET

SUPER SMOOTH AND STIFF DT Steel bearing

FREEHUB COMATIBLE WITH

SHIMANO HG

XDR

Campagnolo 11/12S

Campagnolo 13 (N3W)

HELIUM G3 WHEELS designed with super light weight

Full Toray T800 Carbon RIM and FULL CARBON BLADE SHAPE SPOKE

  • GREAT REACTION
  • HIGH SPEED
  • SUPER POWERFULL
  • TUBELESS COMPATIBLE

WHY CARBON FIBER SPOKE

POWER SAVE

MORE STIFF

MORE AERO

SUPER LIGHT WEIGH

EASY BUILD LIKE STEEL SAPIM CXRAY

SUPER REACTION



QR AND BRAKE PADS NOT INCLUDED FOR HELIUM

ONLY FOR EXO RIM BRAKE

                                                     EXO E5 HUB

NOT ONLY COOL SHAPE DESIGN BUT ALSO HIGH LEVEL ALUMINIUM T7075 MATERIALS MADE

NEW EXP RATCHET SYSTEM

STANDARD WITH 36T RATCHET

54T RATCHET AS UPGRADE OPTION

SUPER SMOOTH AND STIFF  HSCER CERAMIC

FREEHUB COMATIBLE WITH

SHIMANO HG

XDR

Campagnolo 11/12S

Campagnolo 13 (N3W)

EXO WHEELS designed with super light weight

Full Toray T700 Carbon RIM and FULL CARBON BLADE SHAPE SPOKE

  • GREAT REACTION
  • HIGH SPEED
  • SUPER POWERFULL
  • TUBELESS COMPATIBLE

WHY CARBON FIBER SPOKE

POWER SAVE

MORE STIFF

MORE AERO

SUPER LIGHT WEIGH

EASY BUILD LIKE STEEL SAPIM CXRAY

SUPER REACTION



QR AND BRAKE PADS NOT INCLUDED FOR EXO DISC

ONLY FOR EXO RIM BRAKE
